How high to install outdoor garage lights can change the whole feel of your home. I learned that after mounting mine too high and getting harsh glare in my eyes. It looked more like a warehouse than a house.
Most outdoor garage lights sit best at 66 to 72 inches from the ground, or 6 to 12 inches above the garage door frame. That range gives balanced light and strong curb appeal. The ideal height for exterior garage lights also depends on door size and fixture scale.
In this guide, I’ll share a simple garage wall light placement guide, explain proper garage light mounting height, and show how far above the garage door to install lights for clean, even results. Let’s get it right the first time.

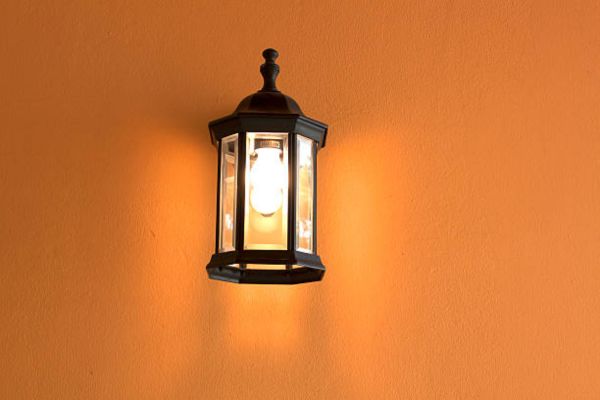

What Is The Ideal Height For Exterior Garage Lights?
Standard Height From Ground
The ideal height for exterior garage lights is 66 to 72 inches from the ground. That range sits close to natural eye level, so light spreads evenly across the door and driveway. Balanced height means softer shadows and better curb appeal.
I learned this the hard way. My first install sat near 80 inches. The light shot straight down like a spotlight and carved sharp shadows on the door panels. Too high creates harsh downward beams that feel cold and commercial.
Eye-level alignment creates comfort. At about 5.5 to 6 feet high, the fixture center lines up with how people see your home from the driveway. That simple shift gives a warm welcome instead of a security floodlight vibe.
How Far Above Garage Door To Install Lights?
A clean rule is 6 to 12 inches above the top trim of the garage door. That small gap keeps the fixture connected to the door frame visually. It looks planned, not random.
For a 7-foot garage door, lights often land closer to 66 to 70 inches from ground level. An 8-foot door pushes the centre slightly higher, around 70 to 72 inches. Taller doors need a bit more lift to keep visual balance.
Double garages need symmetry. Each fixture should mirror the other in height and spacing. Picture a simple sketch: door frame, trim line, then light centered 8 inches above that trim. Clean lines create calm design.

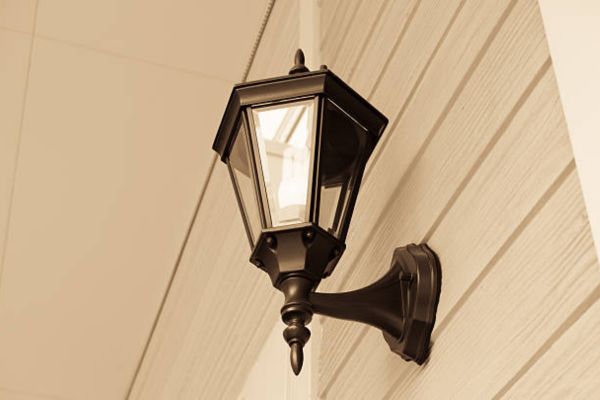

Garage Light Mounting Height Based On Garage Type
Single Garage Setup
A single garage can use one centred light above the door or two lights flanking each side. Both options work. The key is proportion.
For one centred light, aim for that 66 to 72 inch centre height. For two flanking lights, keep each fixture aligned at the same centre mark. Consistent height keeps the wall from looking tilted.
Double Garage Setup
A double garage usually looks best with two lights, one on each side. Mount them at the same height. Keep spacing clean and even.
A simple spacing rule helps here. Place each fixture about one-quarter of the total garage width from the outer edges. That keeps the design balanced and avoids the “floating light” look. Symmetry makes the whole facade feel stable.
Carriage-Style Fixtures
Carriage-style fixtures often sit slightly higher than modern sconces. The taller shape needs room to breathe. A few extra inches can improve proportion.
Decorative placement focuses on visual impact. Functional placement focuses on beam spread and safety. The sweet spot blends both. Beauty and light output should support each other.

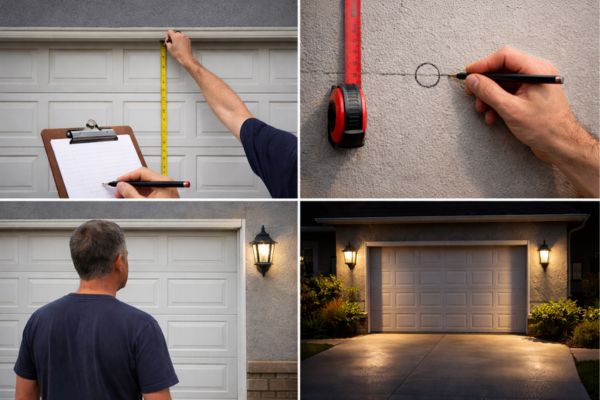

Garage Wall Light Placement Guide: Step-by-Step
Start by measuring your garage door height. Write it down. Clear numbers prevent guesswork.
Next, mark 66 to 72 inches from the ground. That mark should represent the centre of the fixture, not the top. Centre alignment matters most.
Stand in the driveway and look at the mark. Eye-level comfort is the goal. I once skipped this step and ended up with a glare in my face every night.
After mounting, test the light spread at night. Watch how shadows fall on the driveway. I adjusted mine down two inches after installation. That small fix removed glare and made the home look softer.
Standard Height For Outdoor Wall Sconces
Porch sconces usually sit at 60 to 66 inches from the ground to the centre. That works well near entry doors. The scale feels right for people walking close to the wall.
Garage lights sit slightly higher. The garage door is larger than a front door, so the light needs more visual lift. Larger wall space demands a stronger proportion.
Think of it like hanging art. Small frames sit lower. Large canvases hang a bit higher. The same design logic applies here. Mounting at the right height improves balance, but choosing the right colour bulb for outdoor light makes the whole garage look warm and inviting.

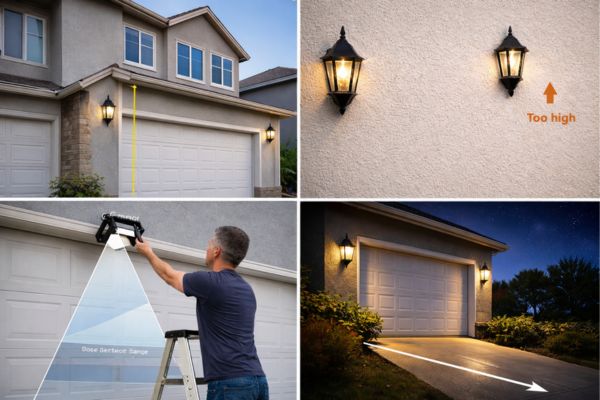

Factors That Change Garage Light Mounting Height
Ceiling height plays a role. Taller garage exteriors may need lights closer to 72 inches or above. Scale should match structure.
Fixture size matters too. Large lanterns need more breathing room. Tiny fixtures mounted too high look lost on the wall.
Motion sensor angle affects performance. Security fixtures need a clear detection path. Mounting too high narrows the sensing zone.
Driveway slope can change perception. A sloped drive may require slight height adjustment for comfort.
Some US neighbourhoods follow dark sky rules. Lower placement with controlled beams helps reduce light pollution. Thoughtful height protects both neighbours and night skies.
Common Mistakes When Installing Garage Lights
• Mounting too high creates a harsh security look
• Mounting too low causes glare at eye level
• Uneven spacing on double garages breaks symmetry
• Ignoring beam spread leads to dark corners
• Choosing style over function reduces visibility
Small errors can shift the entire look of a home.
My Personal Installation Experience
My first install sat too high. I measured from the top of the trim instead of the ground. That mistake threw off the center point.
The result looked stiff and cold. The driveway felt like a loading dock. I lowered both fixtures by three inches.
That tiny adjustment changed everything. The light spread widened. Shadows softened. The house suddenly looked more welcoming.
Height influences perceived home value. Balanced lighting makes a property feel cared for. Buyers notice details, even subtle ones.
Quick Measurement Chart
Garage Door Height — Recommended Light Height
7 ft — 66 to 70 inches
8 ft — 70 to 72 inches
Above 8 ft — 72 to 78 inches
Use the chart as a guide, then adjust for fixture size and style.
FAQs
How high to install outdoor garage lights for an 8 foot door?
For an 8 foot door, mount the fixture center around 70 to 72 inches from the ground. That height keeps the light balanced with the taller door. Proper alignment prevents harsh downward glare.
How far above garage door should lights be installed?
Install lights 6 to 12 inches above the top trim. This keeps the fixture visually connected to the frame. The small gap creates clean proportion.
Should garage lights be centered on the door?
Yes, center alignment improves symmetry. Single doors may use one centered fixture. Double setups usually place lights on each side at equal height and distance.
Are garage lights supposed to be at eye level?
The center should sit near natural eye level, around 66 to 72 inches. That range provides comfortable illumination. Light feels welcoming instead of harsh.
What is the best garage light mounting height for security?
Mount security lights near 70 to 72 inches for strong coverage. Keep motion sensors angled toward walking paths. Proper height improves detection without excessive glare.
Conclusion
The ideal height for exterior garage lights sits between 66 and 72 inches in most homes. That range balances function and curb appeal.
Measure carefully. Check proportions from the driveway. Test light spread at night.
Drill once, not twice. Balanced light turns a simple garage into a polished front view.
